Documentation

SSH Bastion

Akeyless SSH Bastion

SSH Bastion aims to traffic connections to servers that are not directly accessible via SSH, but instead directed through a bastion host, which proxies the connection between the SSH client and the remote servers.

Akeyless SSH bastion is based on a Docker container with two main features:

  • Support SSH signed certificate authentication with a simple setup
  • Can record all SSH sessions traffic, and expose them to the filesystem for log forwarding

command structure - host port:docker port
ports: (-p)

  • 9900 - Akeyless Restful API
  • 22 - SSH port

volumes: (-v)
-v {local_path}::/var/akeyless/conf/logand.conf ports: (-p) - configure your SSH log forwarding, see also SSH Log Forwarding
-v {local_path}::/var/akeyless/creds ports: (-p) - location of the credentials
-v <host_filesystem_logs>:/tmp/ssh_logs - logs are written to this directory

Bastion Installation

As mentioned before, the Akeyless SSH bastion is based on docker, so it's very simple to spin it up:

docker pull akeyless/ssh-proxy
docker run -d -p 0.0.0.0:<host_ssh_port>:22 -p 0.0.0.0:9900:9900 -v <host_filesystem_creds>:/var/akeyless/creds -v <host_filesystem_logs>:/tmp/ssh_logs -v <conf_file>:/var/akeyless/conf/logand.conf akeyless/ssh-proxy:latest

Example:

docker pull akeyless/ssh-proxy
docker run -d -p 0.0.0.0:2222:22 -p 0.0.0.0:9900:9900 -v ~/ssh-proxy/creds:/var/akeyless/creds -v ~/ssh-proxy/logs:/tmp/ssh_logs -v ~/ssh/log_forwarding.conf:/var/akeyless/conf/logand.conf akeyless/ssh-proxy:latest

🚧

Please Note

If you wish to configure log forwarding for Syslog, Spunk, ELK / Logstash, and ELK Elasticsearch, please follow the relevant instructions.

📘

Please Note

host_filesystem_creds - Make sure to keep your CA public key here, the file must be named ca.pub
host_filesystem_logs - All the SSH sessions will be recorded here, file per session

Configure Target Server

Now configure the target remote server you wish to authenticate to, by completing the following steps:

  • Place your CA public key (ca.pub) in the remote server under /etc/ssh/ca.pub
  • Now configure your remote server to trust it by adding this line in /etc/ssh/sshd_config: TrustedUserCAKeys /etc/ssh/ca.pub
  • Run the following command in the remote server: systemctl restart sshd
  • Run the following command, and make sure you replace remote_user and remote_server_host with the right values:
./akeyless-ssh <remote_user>@<remote_server_host> via localhost:2223 --cert-issuer-name akeyless-ssh-cert --profile ldap-compose

SSH Client Authentication Via Bastion

Use akeyless-ssh script to perform SSH authentication to the target server via Akeyless Proxy:

./akeyless-ssh <[email protected][:port]> via <bastion-server[:port]> --cert-issuer-name

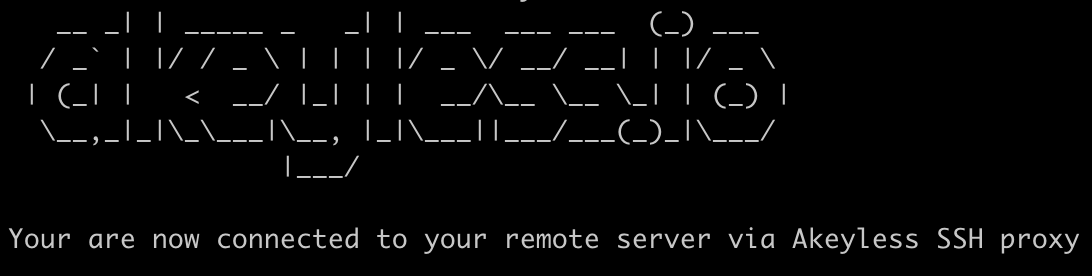

After a successful login you should see Akeyless logo in the terminal, this indicates you managed to login via Akeyless bastion.
