OAuth2.0/JWT

The OAuth2.0/JWT method allows authentication via a configured OAuth2.0/JWT provider.

This standard provides secure delegated access. It means that an application can take actions or access resources from a server on behalf of the user, without them having to share their credentials. It does this by allowing the identity provider (IdP) to issue tokens to third-party applications with the user’s approval.

Create an OAuth2.0/JWT Authentication Method from the CLI

Let's create a new OAuth2.0/JWT authentication method using the Akeyless CLI. (You can do this also from the Akeyless Console.)

akeyless auth-method create oauth2 \
--name oauth-am \
--jwks-uri <https://jwks-uri> \
--unique-identifier email

Where:

  • name: A unique name for the authentication method. The name can include the path to the virtual folder where you want to create the new authentication method, using slash / separators. If the folder does not exist, it will be created together with the authentication method.

  • jwks-uri: The URL to the JSON Web Key Set (JWKS) that contains the public keys that should be used to verify any JSON Web Token (JWT) issued by the authorization server. Alternatively, you can load the JWKS containing the public keys that should be used to verify the JWT issued by the authorization server in base64 format using one of the following parameters jwks-json-data or jwks-json-file. In case your JWKS URL is not accessible from the public network you can set your Akeyless Gateway URL for internal authentication endpoint using the gateway-url parameter with an option to load a self-signed certificate when needed.

  • unique-identifier: A unique identifier is usually an email, username, or UPN. Whenever a user logs in with a token, OAuth2.0/JWT Identity Providers issue sub-claims containing details that uniquely identify the user. A sub-claim includes a key holding the unique identifier value you configured and is used to distinguish between different users from within the same organization.

By default, Akeyless treats the comma char , as a delimiter for the JWT attributes, in case your IdP uses different characters as a delimiter, you might set those using the delimiters parameter.

You can find the complete list of additional parameters for this command in the CLI Reference - Authentication section.

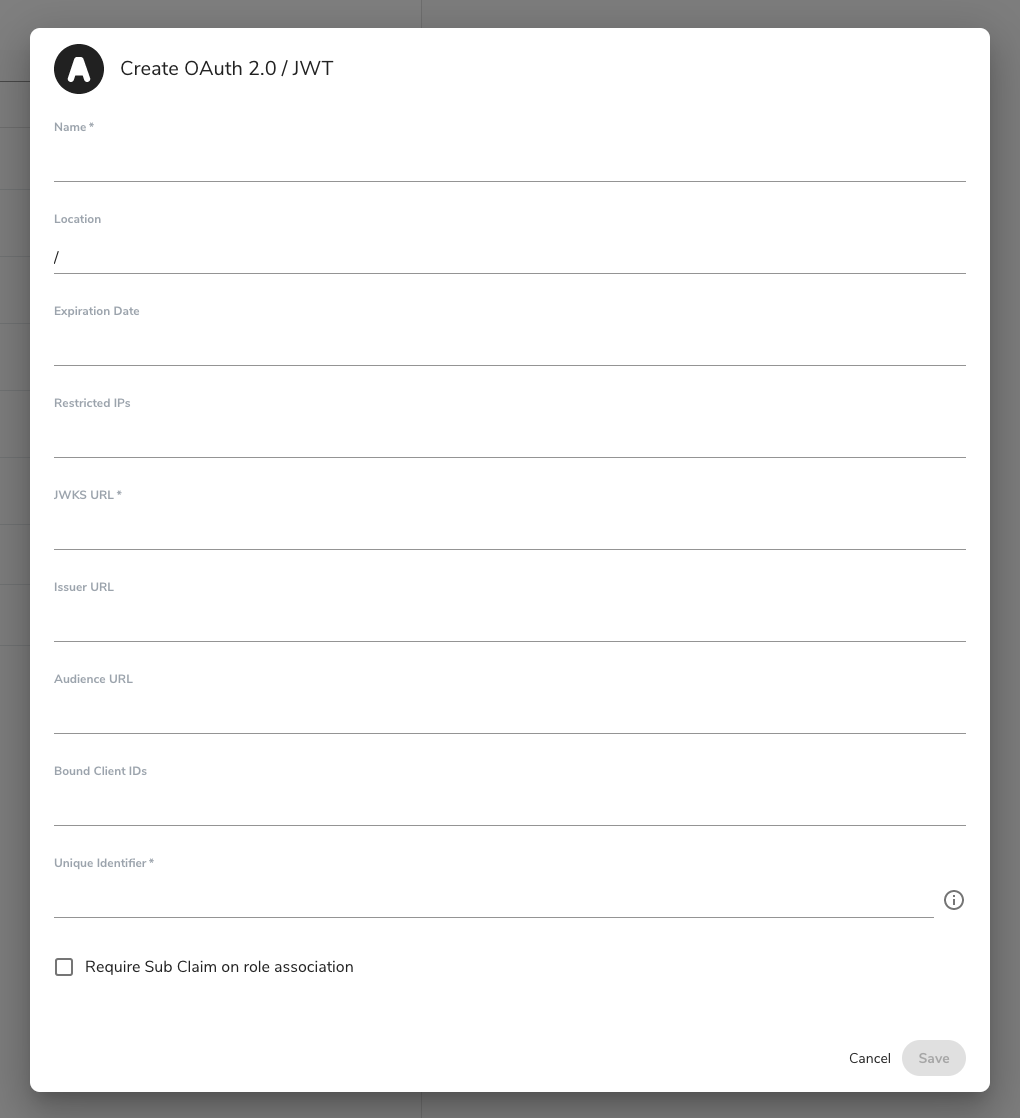

Create an OAuth2.0/JWT authentication method in the Akeyless Console

  1. Log in to the Akeyless Console and go to Users & Auth Methods > ⊕ New > OAuth2.0/JWT, and click on Next →.

  2. Define a Name for the authentication method, and specify the Location as a path to the virtual folder where you want to create the new authentication method, using slash / separators. If the folder does not exist, it will be created together with the authentication method.

  3. Define the remaining parameters as follows:

  • Allowed Client IPs: Enter a comma-separated list of CIDR blocks from which the client can issue calls to the proxy. By "client," we mean CURL, SDK, etc. This parameter is optional. Leave it empty for unrestricted access.

  • Allowed Trusted Gateway IPs: Enter a comma-separated list of CIDR blocks. When specified, the Gateway with the IP from this range will be trusted to forward original client IPs (so that they will be visible in the logs). If empty, the IP of the Gateway will be used in the logs.

  • Audit Log Sub Claims: Enter a comma-separated list of sub-claims keys to be included in the audit logs.

  • Expiration Date: Select the access expiration date. This parameter is optional. Leave it empty for access to continue without an expiration date.

  • Unique Identifier : A unique identifier is usually an email, username, or UPN. Whenever a user logs in with a token, OAuth2.0/JWT Identity Providers issue sub-claims containing details that uniquely identify the user. A sub-claim includes a key holding the unique identifier value you configured and is used to distinguish between different users from within the same organization.

  • JWKS URL : Enter the URL to the JSON Web Key Set (JWKS) containing the public keys that should be used to verify any JSON Web Token (JWT) issued by the authorization server. Alternatively, you can load the JWKS containing the public keys that should be used to verify the JWT issued by the authorization server using the JSON option

  • Issuer URL: Enter the issuer URL. This parameter is optional.

  • Audience URL: Enter the audience in the JWT. This parameter is optional.

  • Bound Client IDs: Enter a list of the Client's IDs for which access is allowed. This parameter is optional. Leave it empty for unrestricted access.

  1. Click on Finish.

What’s Next

Make sure to associate your new Authentication Method with an Access Role to grant the relevant permissions within Akeyless
